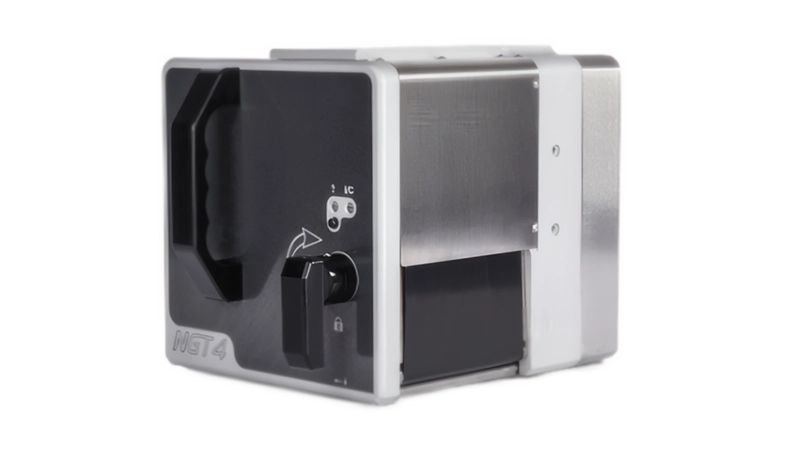

NGT4 Message size up to 107mm by 1000mm

Capable of accommodating an intermittent print area of 107mm x 90mm and a continuous print area of 107mm x 1000mm, all with the added benefit of an integrated controller for ease of use. This thermal transfer printer offers all the advantages known to the NGT range with a print head size of 107mm.

The NGT range has the largest CM print area allowing for huge amounts of information to be printed in a single pass thus eliminating the need for multiple print runs – boosting productivity and reducing idle time on your production line.
Ideally suited for the pharmaceutical industry as it can perform applications up to and including serialisation. Engineered to deliver the best print results and deliver the razor-sharp print images reliably every time.
Nicelabel compatible which aims to streamline the printing process by centralising message management. This reduces human errors and ensures consistent print quality. Therefore, reducing the financial costs associated with re-working incorrectly printed products.

Product Summary

With the NGT Thermal Printer there are no limits to your application. Delivering unmatched operational efficiency through cycle rates of up to 550 products per minute. All in a compact, integratable, intelligent package suitable for fast paced demanding production environments.

Key Features

Class leading Print Area of 107mm by 1000mm
German manufacturing means the NGT range are recognised as the premium choice for heavy industrial and technically compliant environments
The NGT4 performs an exceptional 550 prints per minute at a 5mm print height

Technical Specifications

Data	NGT4 Message size up to 107mm by 1000mm
Printing surface clocked	107x90mm
Clocked print speed	50 – 500mm/sec
Clock rate at 5mm print image height	550rpm
Print surface continuous	107x1000mm
Print speed continuously	3-29m/min
Print resolution	300dpi
